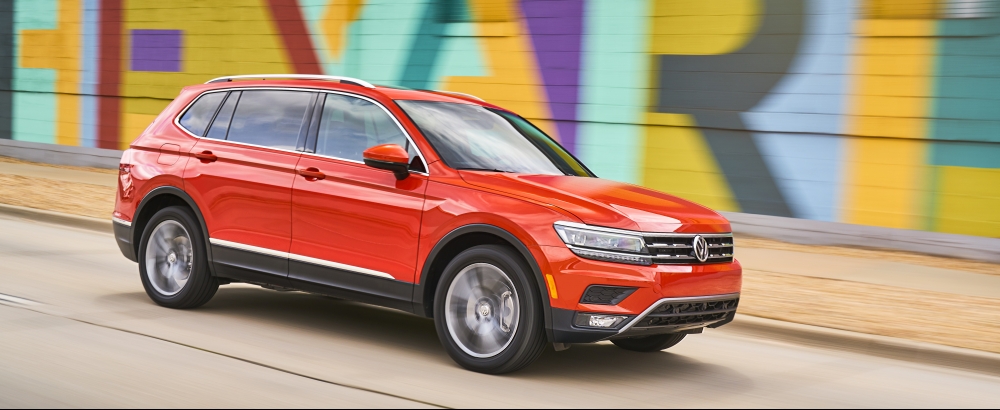

ALL-NEW 2018 VOLKSWAGEN TIGUAN: AIMED AT THE HEART OF THE COMPACT SUV MARKET

  • Second-generation Tiguan is based off the award-winning MQB architecture
  • Long-wheelbase designed specifically for the needs of American customers
  • Longer by 10.6 inches than the current model, with up to 58 percent more cargo space
  • Third-row seating standard on certain trims and optional across lineup
  • Updated 2.0-liter TSI® engine and eight-speed automatic transmission standard
  • Optional 4Motion® with Active Control all-wheel-drive system features four selectable modes for varied terrain
  • Choice of four well-equipped trim levels, with a starting MSRP of $25,195

Herndon, VA  – The all-new 2018 Volkswagen Tiguan builds on the current model’s fun-to-drive character with a redesign specifically engineered to meet the needs of American customers, with a more sophisticated and spacious interior, flexible seating, and high-tech infotainment and available driver-assistance features.

As with the all-new 2018 Volkswagen Atlas mid-size SUV, the new Tiguan is based on Volkswagen’s Modular Transverse Matrix (MQB) architecture. Compared with the 2017 model, the new Tiguan has far more interior space and up to 58 percent more cargo space in the two-row model. At 185.1 inches long, the 2018 model is 10.6 inches longer than the current version and 8.5 inches longer than the Tiguan that is sold in Europe. Tiguan’s expanded dimensions give it one of the longest footprints in the segment, although it still remains nimble enough to excel in urban driving.

The compact Tiguan SUV will be available in S, SE, SEL, and SEL Premium trim levels.



Exterior

The all-new Tiguan marks an evolution in Volkswagen’s clean and timeless design DNA, with modern lines and a refined appearance. The MQB platform allows for a wider, lower stance than the current model; the combination of this with sharper character lines and the vehicle’s LED lighting has already garnered several European design awards.

The S trim is distinguished by halogen headlights, LED daytime running lights and taillights, foglights with cornering function, heated exterior mirrors with integrated turn-signal indicators, and 17-inch “Montana” wheels. The SE trim wears 17-inch “Tulsa” wheels and features, and a chrome exterior package. The Tiguan SEL includes 18-inch “Nizza” wheels, a power liftgate, and silver roof rails.

The top-of-the-line SEL Premium trim is shod with 19-inch “Victoria Falls” wheels, LED headlights with the Adaptive Front-lighting System (AFS), rain-sensing wipers, and power-folding exterior mirrors with puddle lights. The SEL Premium also features a hands-free Easy Open power liftgate, which is foot-activated on opening to make Tiguan’s cargo space more accessible when customers’ hands are full. The liftgate also includes an Easy Close feature. Two buttons give owners the option to close the liftgate with the touch of a button—one to close it immediately and one to automatically close once you step away from the vehicle.

An R-Line® package will be available later in the model year for the SEL and SEL Premium, and includes R-Line-specific aluminum-alloy wheels—19-inch “Trenton” wheels for the SEL and 20-inch “Braselton” wheels for the SEL Premium. Further design elements specific to the R-Line are a revised high-gloss front bumper with large air inlets, a unique rear bumper, wheelarch extensions, and R-Line side skirts and exterior badging.

The exterior design of Tiguan also emphasizes its rugged utility. The front bumper, for instance, is similar to the European model’s off-road package, complementing the Tiguan’s available 4Motion all-wheel-drive system with a 26-degree approach angle. Other indications of its off-road capability are a 23-degree departure angle and 7.9 inches of ground clearance.

Roof rails are standard, allowing outdoors enthusiasts to upgrade the vehicle with Volkswagen accessories such as bike, kayak, and ski carriers. The new Tiguan has a lower lift-in height for the tailgate, making it easier to load, no matter what cargo you’re carrying. The available towing hitch can be used to pull up to 1,500 pounds when properly equipped.



Interior

The Tiguan’s entire interior has been rethought and refreshed, but the versatility of its seating is what sets it apart from the competition. In front-wheel-drive Tiguan models, three rows of seating are standard, including a second-row bench that can recline, slide seven inches fore and aft, fold down, and be split 40/20/40. The 50/50 split third-row provides seating for two, and also folds down. When configured with Volkswagen’s 4Motion all-wheel-drive technology, the 2018 Tiguan comes standard with two rows and a third row is optional.

In three-row models, folding the rear seat creates 33 cubic feet of rear cargo space, and that can be easily expanded to a maximum of 65.7 cubic feet by folding the second row, using the levers in the cargo area. With all three rows in place, there is still a handy 12 cubic feet of cargo space.

In two-row models, the new Tiguan supplies a generous 37.6 cubic feet of space behind the rear seats and 73.5 cubic feet in all. That represents an increase of 17.4 cubic feet over the maximum cargo space in the 2017 Tiguan. The 40/20/40 split seats allow the two-row Tiguan to accommodate skis, fishing gear, or other large items.

In the cargo area, tie-down hooks help keep things in place and a 12-volt outlet is included. In models equipped with the available Fender® Premium Audio System, the subwoofer is hidden in the spare tire area, to avoid sacrificing cargo space.

To let the outside into the Tiguan cabin, there’s an available panoramic glass tilt-and-slide sunroof. This aerodynamically and acoustically optimized panoramic roof is comprised of an opening glass panel at the front and a fixed glass panel at the rear. It features pinch protection and an electrically-operated one-touch sunshade that covers the inside of the entire glass area. The expansive sunroof with ambient lighting around the edges is available for the SE trim and is standard on the SEL and SEL Premium.

The interior features modern, high-quality design with a sporty, driver-focused layout, using gloss-grey and chrome details. Standard features now include a multi-function steering wheel and cloth seats with a rhombus pattern that offers a premium look. Tiguan SE and SEL models feature heated leatherette seating surfaces along with a leather-wrapped steering wheel; the SEL Premium brings leather seating surfaces for rows one and two and a heated steering wheel.

Between the large speedometer and tachometer is a multi-function trip computer that helps monitor everything from fuel consumption to trip distance, Bluetooth® connection status and navigation directions (when equipped). The available Volkswagen Digital Cockpit display, first seen on the 2018 Atlas, offers drivers a reconfigurable display of key data and the ability to position navigation data front and center for easy viewing.

MIB II Infotainment. As standard equipment across the Tiguan line, the MIB II infotainment system not only creates the foundation for the next generation of Volkswagen’s Car-Net® connected vehicle services platform, but also offers one of the most comprehensive suites of connected vehicle services and features available in the automotive industry today.

The Tiguan S is equipped with the Composition Color unit, which features a new 6.5-inch capacitive touchscreen display. The infotainment system also offers SD card and USB (one port) multimedia interfaces, as well as a rearview camera and standard Bluetooth® technology for compatible devices.

Tiguan SE, SEL and SEL Premium models are equipped with a glass-covered 8.0-inch touchscreen display—SE models with the Composition Color unit; SEL and SEL Premium models with the Discover Media system with navigation. The new 8.0-inch display is not only brighter than previous generation of MIB II, it also offers better color reproduction, response time and improved viewing angles due to the switch to In-plane Switching (IPS) technology.

Both Composition Media units and Discover Media units feature three USB ports,  a JPEG viewer, SiriusXM® Satellite Radio for a three month trial period, HD Radio, and support for lossless audio file format (Free Lossless Audio Codec FLAC). Both units also have the ability to send and receive SMS text messages with Bluetooth via voice command with compatible phones and pair two phones simultaneously. The Discover Media unit offers 2.5D navigation, featuring one-shot voice destination entry, destination entry with quick search and auto-complete, and predicts possible destinations based on often used routes.

New Fender® Premium Audio. The new Tiguan SEL Premium also has the latest Fender Premium Audio System as standard equipment. Updated for the new-generation models, this is the most powerful Fender sound system ever offered in Tiguan.

The system was developed through collaboration between Fender, the legendary music amplification experts, and Panasonic®. A powerful, 480-watt, 12-channel amp delivers arena-sized sound to the Tiguan cabin. There are nine speakers in total, including Super TwinTM front-door speakers and a Bassman TM subwoofer. The Super Twin units are 200-mm dual voice-coil woofers that are specifically engineered for improved front-stage imaging and bass response, while the subwoofer, with a single voice-coil setup, ensures Fender’s signature audio experience is enjoyable across all rows.

Volkswagen Car-Net. Volkswagen is committed to driving the development of more connected and intelligent vehicles, and the Car-Net® connectivity system is a major element in achieving that goal. Features available through Car-Net are divided into three key areas: “App-Connect,” “Security & Service,” and “Guide & Inform.”

Car-Net App-Connect smartphone integration for compatible devices is standard on all Tiguan models. App-Connect offers users the ability to run select smartphone apps directly on the vehicle’s display through services like Apple CarPlay™, Android Auto™ and MirrorLink®.

Equipped on Tiguan SE models and above, Car-Net Security & Service is a suite of elements that provides security features and also allows owners to access their VW remotely through vw.com/carnet as well as a smartphone app.

Customers purchasing new Volkswagen models equipped with VW Car-Net Security & Service will receive a no-charge, six-month trial subscription from Verizon Telematics. To extend the benefits of this system after the trial, customers can choose from a number of payment options: One year for $199, two years for $378, and three years for $540, or month-to-month for $17.99, plus applicable taxes and fees.  App-Connect can be used free-of-charge and is not included as part of the subscription-based services.

Available Car-Net Security & Service features include Automatic Crash Notification, which can automatically notify an operator who can quickly contact first responders in the event of a collision; Manual Emergency Call, a feature that allows for quick access to customer specialists at the touch of a button; Roadside Assistance, for added peace-of-mind in the event of trouble on the road; and Stolen Vehicle Location Assistance, which uses Car-Net Security & Service to assist law enforcement with locating your vehicle in the event that it is stolen.

In addition, Car-Net Security & Service offers remote vehicle access, remote door lock and unlock, remote honk and flash of lights, last parked location information, and remote status check (doors and windows). Consumers will also be able to send a location from their connected smart device to the factory-installed compatible navigation system on select models. For consumers who prefer a more personal touch, agent destination assist is also available.

Car-Net Security & Service also includes Family Guardian, which offers features such as: speed alert, which notifies the owner of the vehicle when the pre-determined maximum speed limit is exceeded; and boundary alert, which lets you know when the vehicle has traveled outside of a pre-set virtual boundary.

Diagnostics and maintenance information is also available through Car-Net Security & Service. In addition to the vehicle’s warning and indicator lights, a Vehicle Health Report provides customers easy access to diagnostic information. When it’s time for scheduled service, Car-Net Security & Service not only notifies the customer, but provides a simple way to schedule a dealer visit. It can even identify the closest dealer in case owners need a recommendation.

The available VW Car-Net app for smartwatch (supports select Apple Watch and Android Wear operating systems) allows VW customers to control a host of Security & Service features and functions available through the iPhone app and Customer Web Portal, directly from their wrist. Smartwatch wearers can keep tabs on their vehicle from afar, remotely locking and unlocking doors and viewing the status of doors, windows and sunroof (open or closed). These consumers can also find a parked vehicle quickly, with a map of the current vehicle location, and get walking or driving directions to the vehicle. Drivers can check their fuel level and receive alerts with a compatible smartwatch.

Car-Net Guide & Inform is included on Tiguan SEL and SEL Premium and offers an enhanced navigation and infotainment experience for VW consumers. Volkswagen has incorporated technologies that enhance existing navigation offerings while adding an additional level of information that empowers consumers. The in-vehicle navigation system features fuel prices, sports scores, movie information and weather data as part of the three-month SiriusXM Travel Link trial. VW customers will also enjoy real-time traffic information and a complimentary three-month SiriusXM Traffic trial.



Powertrain

The all-new 2018 Volkswagen Tiguan arrives in dealerships this summer powered by an advanced version of Volkswagen’s EA888 four-cylinder engine. The updated version of the benchmark EA888 four-cylinder, turbocharged and direct-injection engine uses an innovative modification to the conventional four-stroke cycle to offer an improved combination of power, efficiency and responsiveness.

First introduced in the 2009 CC, the EA888 continued Volkswagen’s move toward smaller, turbocharged engines that offer the fuel economy benefits of downsizing with the power of a larger-displacement unit. The majority of the engine—from the cast-iron block to the aluminum-alloy pistons and cylinder head to the valve springs—has been updated for this new application.

During development, engineers focused on making the engine more efficient in the range of driving that most customers use every day, which led to the introduction of a modified Miller combustion cycle that is unique to the Volkswagen Group. The so-called Budack-cycle closes the intake valves much earlier, however, resulting in a longer effective combustion chamber as well as faster air flow for the incoming gases, which improves the mixing of the fuel and air. The net effect is lower fuel consumption and more torque than the 2.0-liter EA888 engine fitted in the 2017 Tiguan.

The key feature that enables the new engine to produce better fuel economy, as well as excellent performance, is the variable valve timing system on the intake camshaft. Depending on engine load, it is possible to switch between short and long valve opening. At idling speed and under partial load, the valve opening is shorter and there is less lift. When the engine is placed under greater load, the camshaft lobe switches to open the valves wider and for a longer period, so the driver can make use of the full power and torque of the engine.

The changes in the new version of the EA888 advance the twin goals of power and efficiency. The peak 184 horsepower kicks in at 4,400 rpm and maintains its output until 6,000 rpm. Maximum torque of 221 lb-ft is achieved at 1,600 to 4,300 rpm. The compression ratio rises to 11.7:1 due to a modified piston crown. New TSI injectors can push fuel into the cylinder at a higher maximum pressure (250 bar or 3,626 psi), with up to three injection sequences per stroke depending on conditions.

The EA888 Gen3B retains many key features of its predecessors, from chain-driven double overhead camshafts to the twin balance shafts that not only counteract second-order internal forces but provide oil scavenging and crankcase breathing pathways.  A new engine management system with four core processors monitors the system and adjusts as needed. Reducing friction was another goal for this engine. For instance, the lower brake mean effective pressure at full load in this engine allowed the crankshaft main bearing diameter to be reduced from 52 to 48 mm, while the balance shaft chain is narrower.

A Start/Stop system is standard for all Tiguan trims to improve fuel efficiency. This technology stops the engine during idle when the brake pedal is held (such as when waiting at a red light). When the brake pedal is released, the engine restarts.

Tiguan models configured with front-wheel drive have 15.3 gallon fuel tanks; models with 4Motion all-wheel drive feature 15.9 gallon tanks. Thanks to Tiguan’s new engine and eight-speed automatic transmission, EPA-estimated fuel economy for front-wheel drive models rises to 22 mpg in city driving, 27 mpg on the highway and 24 mpg in combined driving. Models with 4Motion all-wheel drive also see significant increases and are rated at 21 mpg in city driving, 27 mpg on the highway and 23 mpg in combined driving.

4Motion with Active Control All-wheel-drive System

Tiguan can be equipped with the 4Motion with Active Control all-wheel-drive system. The latest-generation 4Motion system is activated before wheelspin occurs to help eliminate traction losses. The system achieves this by using an advanced control function based on specific driving conditions. When operating under a relatively low load or when coasting, the front wheels are driven and the rear wheels are decoupled, helping to save fuel. However, the rear wheels can be engaged in fractions of a second whenever necessary via the center differential, which is activated by an electro-hydraulic oil pump.

A control unit continually calculates the ideal drive torque for the rear wheels and controls how much the multi-plate clutch should be closed by activating the oil pump. The oil pressure increases the contact pressure at the clutch plates in proportion to the torque desired at the rear axle. So, the amount of pressure applied to the clutch plates can be used to continuously vary the amount of torque going between the front and rear wheels.

In addition to the center differential, which acts longitudinally, electronic differential locks from the Electronic Stability Control (ESC) system act laterally. The system briefly brakes a wheel that is slipping, helping to enable uninterrupted and stable transfer of drive power to the wheel on the opposite side.

Active Control. All Tiguan models with 4Motion all-wheel drive feature Active Control, which allows the driver to select specific vehicle profiles based on driving conditions. It has four settings: On-road, Snow, Off-road, and Custom Off-road. The singular user interface is highly intuitive, comprising both a rotary knob and a push-button. Turning the knob engages the various off-road drive modes, while pushing the button triggers a pop-up menu on the screen of the infotainment system, allowing the driver to fine tune the On-road mode.

On-road mode is the default setting. Here, Tiguan automatically varies the drive distribution between the two axles, helping to account for road conditions. A press of the button triggers the driving profile selection screen to pop up on the infotainment screen, offering the driver a choice of "Normal," "Sport," "Eco" and "Custom" drive modes. Within each, the tuning parameters for the engine control, gearbox, steering and optional Adaptive Cruise Control (ACC) are varied.

In Snow mode, the response curve of the accelerator pedal is flattened to help negate unintentional and excessive wheelspin, and the transmission upshifts earlier to help maximize traction. Communicating with the accelerator pedal and individual wheel speed sensors, the Traction Control System (TCS) helps reduce engine power when it detects slippage. The sensitivity of the system is more relaxed in straight-line situations to allow adequate power transfer, while the limits are tightened in cornering, where traction is of paramount importance. Last but not least, ACC is switched to the “Eco” driving profile when in Snow mode.

Off-road mode offers similar throttle and transmission characteristics to Snow mode, adding manual control of transmission shifting via Tiptronic® (only the throttle kickdown switch will force a downshift). The Start/Stop system is switched off in this mode, and ACC operates normally. The ESC system is relaxed to help avoid false positives often encountered off-road, and Hill Descent Control is automatically activated on gradients of more than 10 percent. It functions at speeds between 1.2 mph and 19 mph, and is adjustable via brakes or throttle.

With unique Off-road ABS programming, the wheels can lock up briefly before the system reduces the brake pressure. This allows time for a small wedge of material from the ground (such as gravel or sand) to build up in front of the wheel, thus increasing the braking effect. This helps the car remain steerable while reducing stopping distance.

Custom Off-road mode allows the driver to alter the steering, engine and gearbox behavior, as well as Hill Descent Assist, Hill Start Assist, and several other settings.



Chassis

Mounted in a lightweight, one-piece strengthened steel subframe, the Tiguan’s strut-type front suspension has lower control arms and long-travel coil springs. At the rear, the robust four-link system was designed to cope with the rigors of driving off paved roads and to accommodate the available 4Motion all-wheel drive.

Electro-mechanical power steering with variable assistance contributes to the Tiguan’s fun-to-drive character. At highway speeds, the steering becomes firm and direct, while at parking speeds, assistance is increased. Despite its increased length, the new Tiguan is just as nimble as the 2017 model, with a smaller turning radius of 37.7 feet.

An impressive braking system matches the Tiguan’s athletic performance. At the front there are 13.4-inch –diameter vented discs, with 11.8-inch-diameter solid discs at the rear. The system features a brake disc drying feature to help remove water from the rotors to optimize wet-weather braking, as well as Electronic Brake-pressure Distribution (EBD), and Hydraulic Brake Assist (HBA). All Tiguan models also feature an electronic parking brake.



Safety

Safety in the 2018 Tiguan starts with a rigid laser-seam-welded bodyshell, a crash-optimized and energy-absorbing front end, and heat-formed steel center B-pillars. Front and side-thorax airbags help protect the driver and front-seat passenger, while Side Curtain Protection® head airbags help protect those in the front and rear seats, in addition to safety belt pretensioners. Electronic assistance includes Electronic Stability Control (ESC), Anti-Slip Regulation (ASR), Anti-lock Braking System (ABS) and Tire Pressure Monitoring System (TPMS).

All Tiguan models feature the advanced Volkswagen Intelligent Crash Response System (ICRS) that automatically shuts off the fuel pump, unlocks the doors, and even switches on the hazard warning lights if the airbags deploy.

The Tiguan is the only vehicle in its class to offer the Automatic Post-Collision Braking System, which is standard on all models. This system builds on the premise that a collision is rarely a single, instantaneous action, but rather a series of events that follow the initial impact—the most significant of which can cause additional collisions. The Automatic Post-Collision Braking System addresses this by applying the brakes when a primary collision is detected by the airbag sensors, thus helping reduce residual kinetic energy and, in turn, the chance of additional damage.



Driver-Assistance Systems

The Tiguan offers a standard rearview camera and number of available driver-assistance systems, including Forward Collision Warning and Autonomous Emergency Braking with Pedestrian Monitoring (Front Assist), Blind Spot Monitor with Rear Traffic Alert, Adaptive Cruise Control (ACC), Lane Departure Warning (Lane Assist), front and rear Park Distance Control with Maneuver Braking (ParkPilot), High Beam Control (Light Assist) and Overhead View Camera (Area View).

Front Assist, optional on S models (in the Driver Assistance package) and standard on Tiguan SE, SEL and SEL Premium, helps warn drivers of potential frontal collisions (Forward Collision Warning) with vehicles and pedestrians, and in some cases provides automatic braking assistance (Autonomous Emergency Braking).

Within physical system limits, Forward Collision Warning helps warn the driver of critical front-end collision situations, both acoustically and visually by a warning symbol in the instrument cluster above 18 mph. If the driver fails to brake, or if the car is below 18 mph, Autonomous Emergency Braking is activated to slow the vehicle. If the brake pedal is applied but the driver brakes too lightly, the brake pressure is increased by the system (Braking Support).

Blind Spot Monitor with Rear Traffic Alert is optional on S models (in the Driver Assistance package) and included as standard equipment on Tiguan SE, SEL and SEL Premium. Blind Spot Monitor uses two radar sensors at the rear of the vehicle to scan the approaching traffic and help warn drivers of potential danger in adjacent lanes. If the driver uses the turn signal to indicate a lane change while a vehicle is detected in a blind spot, the system utilizes a flashing LED symbol in the outer area of the side mirrors. Even if the driver does not use a turn signal, the LED symbol in the mirror will illuminate if a vehicle is detected in the blind spot. The system is designed to help alert drivers in specific situations; stationary objects or oncoming vehicles do not trigger warnings, nor will vehicles more than one lane across away from the vehicle.

If combined with Lane Assist (Tiguan SEL Premium, see below) the system not only helps warn the driver with the flashing LED symbol if a vehicle is detected in the blind spot, but within system limits, it can also countersteer to keep the car in the lane even with turn signals on. If the driver still tries to steer out of the lane, the system will warn with an additional vibration of the steering wheel.

Adaptive Cruise Control (ACC) uses a forward facing radar to maintain a set speed while helping maintain a set distance to the vehicle in front. The driver sets the speed and the desired spacing via buttons on the multifunction steering wheel and can further use those buttons or the brakes to adjust and cancel the ACC function while the accelerator can be used to override the ACC function. All ACC-related system messages appear in the central multifunction display.

When the roadway ahead of the vehicle is clear, the system maintains the set speed. Tiguan models fitted with ACC can match a vehicle in front and come to a stop. If the car in front moves within three seconds, ACC will resume automatically to the set speed. If the car stands longer than three seconds, the driver can resume ACC control after pressing the accelerator pedal or the “resume” button on the steering wheel.

The Rear Traffic Alert system helps detect vehicles approaching from the side that may be difficult for the driver to see while reversing. It offers a sizable range of about 65 feet, and will present a visual and an acoustic warning, before applying the brakes if a potential impending collision is detected. If the driver does not react, the system can apply the brakes to help mitigate and, in the best case, prevent a collision. The system is activated by putting the car in reverse.

The Tiguan SEL Premium is equipped with standard Lane Departure Warning (Lane Assist). When driving above 40 mph, if there is an indication that the vehicle is unintentionally straying from its lane, Lane Assist actively countersteers to help keep the vehicle in the lane. The system’s camera recognizes visible lane markings and, using a special algorithm, calculates the risk of the car leaving the lane. If the driver takes his or her hands off the wheel for a defined period of time, the system provides an audible warning and a visual signal in the instrument cluster, asking the driver to take over. If the vehicle crosses a lane marking without use of a turn signal, the system will countersteer to keep the vehicle in the lane.

The system can work in the dark and/or in fog, but it will not engage if it cannot properly detect lane markings. If the turn signal has been set before crossing a lane marking, the Lane Assist system will not engage or give a warning. The driver can “override” the system at any time by applying minimal force to the steering wheel.

ParkPilot, equipped on Tiguan SEL Premium models, uses ultrasonic sensors located in the front and rear bumpers to monitor a range of up to five feet in front or behind the vehicle. The system is activated when reverse gear is engaged or below a speed of 9 mph and helps provide guidance when parking or in tight spaces. The system has audible and visual warnings when the car starts to approach parked cars or static objects from the front or rear.

New on Tiguan is an emergency braking system called Maneuver Braking. Included with ParkPilot, it can help mitigate or prevent collisions with static obstacles to the rear while the vehicle is maneuvered. The system is active when reverse gear is selected. If the system detects a stationary object while the vehicle is in reverse and moving between 1-6 mph, it can apply the brakes automatically to help prevent or mitigate a collision. The system can be deactivated at any time using the touch display or permanently in the setup menu.

Two final driver assistance features, both standard on the Tiguan SEL Premium, provide drivers with better visibility. High Beam Control (Light Assist) automatically raises the headlamp high beams above 40 mph on dark or poorly lit roads, if there is no oncoming traffic detected. The Overhead View Camera (Area View) uses the car’s four cameras to help give you a better view of what is around your vehicle.



Limited Warranty

The 2018 Tiguan’s six-year/72,000-mile New Vehicle Limited Warranty includes coverage of powertrain components—including the engine, transmission and optional 4Motion® all-wheel-drive system. Major competitors to the Tiguan—such as Ford Escape, Honda CR-V, and Toyota RAV—offer a three-year/36,000 mile basic warranty with a five-year or 60,000-mile powertrain warranty.

Not only does the Volkswagen SUV bumper-to-bumper warranty offer longer coverage than its competitors, but all of its elements can be transferred to subsequent owners up to 6 years or 72,000 miles, whichever occurs first. While Hyundai and Kia offer a five-year/60,000 mile basic warranty and a higher time and mileage limit on their powertrain limited warranties, if the car is sold to a second owner, the powertrain limited warranty is not transferable beyond five years or 60,000 miles from the date it was first sold new.



COMPETITIVE SET

Chevrolet Equinox
Ford Escape
Honda CR-V
Nissan Rogue
Toyota RAV4





About Volkswagen of America, Inc.

Founded in 1955, Volkswagen of America, Inc., an operating unit of Volkswagen Group of America, Inc. (VWoA) is headquartered in Herndon, Virginia. It is a subsidiary of Volkswagen AG, headquartered in Wolfsburg, Germany. VWoA’s operations in the United States include research and development, parts and vehicle processing, parts distribution centers, sales, marketing and service offices, financial service centers, and its state-of-the-art manufacturing facility in Chattanooga, Tennessee. The Volkswagen Group is one of the world's largest producers of passenger cars and Europe's largest automaker. VWoA sells the Atlas, Beetle, Beetle Convertible, CC, e-Golf, Golf, Golf Alltrack, Golf GTI, Golf R, Golf SportWagen, Jetta, Passat, Tiguan, Touareg, and Atlas vehicles through approximately 651 independent U.S. dealers. Visit Volkswagen of America online at www.vw.com or media.vw.com to learn more.

Notes:

This press release and images of the 2018 Tiguan are available at media.vw.com. Follow us @VWNews.

“4Motion”, “TSI”, “VW”, “Volkswagen”, all model names and the Volkswagen logo are registered trademarks of Volkswagen AG. “Car-Net”, and “Side Curtain Protection” are registered trademarks of Volkswagen Group of America, Inc. “CarPlay”, “iPhone” and “iPod” are registered trademarks of Apple Inc. “Bluetooth” is a registered trademark of Bluetooth SIG, Inc. “MirrorLink” is a registered trademark of the Car Connectivity Consortium LLC. “Fender” is a registered trademark of Fender Musical Instruments Corporation. “Android Auto” is a trademark of Google Inc. “Panasonic” is a registered trademark of Panasonic Corporation. “Tiptronic” is a registered trademark of Dr. Ing h.c. F. Porsche AG. “SiriusXM” and “SiriusXM Satellite Radio” are trademarks of SiriusXM Radio, Inc.

Features and technical data apply to models offered in the USA. They may differ in other countries.

All prices listed are the Manufacturer’s Suggested Retail Price and exclude transportation, taxes, title, options, and dealer charges.

1,500 pound maximum tow rating when properly equipped with port or VW dealer-installed trailer hitch and towing accessories. Vehicle load, other accessories, and options may reduce maximum towing capacity.  Trailer hitch for 7-seat configuration has later availability.

Always pay careful attention to the road, and do not drive while distracted.

App-Connect features require compatible device, operating system, and mobile apps. See mobile device and app providers for terms and privacy.  Not all features available on all operating systems. Standard text and data usage rates apply. Android, Android Auto, Google Play, and other marks are trademarks of Google Inc. Apple CarPlay is a trademark of Apple Inc. MirrorLink is a registered trademark of the Car Connectivity Consortium LLC.

Verizon Telematics, Inc. is service provider of VW Car-Net Security & Service. Trial or paid subscription required. VW Car-Net Security & Service services require vehicle cellular connectivity and availability of vehicle GPS signal; certain services may collect location information.

Automatic Crash Notification may be enabled for up to 6 months without activating a trial or paid subscription; Manual Emergency Call feature and all other VW Car- Net Security & Service features require trial or paid subscription.

Roadside Assistance provided by a third party.

Stolen Vehicle Location Assistance for use by law enforcement authorities only.

Refer to your vehicle's warning and indicator lights for the most current diagnostic information. Always consult owner's manual for maintenance guidelines.

App features are limited. Standard text and data rates apply. Always pay careful attention to the road, and do not drive while distracted. “Apple” and “Apple Watch” are registered trademarks of Apple, Inc.

SiriusXM audio and data services each require a subscription sold separately, or as a package, by Sirius XM Radio Inc. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call SiriusXM at 1-866-635-2349. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.

Where stated, fuel economy values (mpg) are EPA estimates. See www.fueleconomy.gov for details. Actual mileage will vary and depends on several factors including driving habits and vehicle condition.

The Intelligent Crash Response System (ICRS) will only activate in a collision where the airbags deploy or safety belt pretensioners activate. Not all collisions cause airbags to deploy or safety belt pretensioners to activate.

Driver Assistance features are not substitutes for attentive driving. See Owner’s Manual for further details, and important limitations.

MY2018 Tiguan 6 years/72,000 miles (whichever occurs first) New Vehicle Limited Warranty.  Claim based on manufacturers’ published data on transferable Bumper-to-bumper/Basic warranty only.  Not based on other separate warranties.  See owner’s literature or dealer for warranty limitations.
